    Charging for Communal, Residential & Commercial Parking

    The award winning eVoomXT is a multi-user smart charge point designed for communal residential and commercial EV charging (workplace, retail parks).

    Designed with an integrated touchscreen, its modular design simplifies installation and maintenance. A cooling functionality means that at full power, the temperature is 10°c lower than the industry average, extending its life by more than eight years.

    Incorporating triple protection technology for safe charging and available to suit single phase (7.4KW) or three phase (11KW/22KW) options, users can access the smart charge point via the app (free to download) or RFID card. Optional cloud based software allows communal parking areas to be managed by a Charge Point Operator (CPO), who is then in control of operating and maintaining the EV charging facility and billing the users.

    The eVoomXT is a winner of both the Red Dot Design Award (2022) and iF Design Award (2022).

    View Brochure

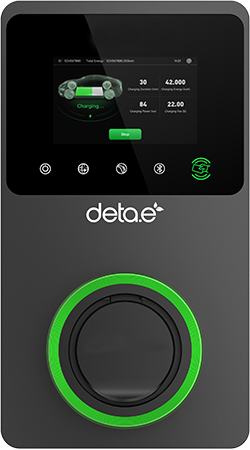

    Picture for category Communal Charger
    icon

    Easy Install

    Easy Installation

    icon

    Powerful

    The eVoomXT can support up to 7.4KW 32A on single phase or 22KW 32A on three phase and has an untethered Type 2 connector

    icon

    Reliable

    Supported by a full 5-year parts & labour warranty

    icon

    PEN Protection

    Provides loss of earth protection, eliminating the time, cost and disruption for an earth rod to be installed

    icon

    Versatile

    Suitable for inside or outside mounting

    Innovative Technology for Long Life, Phase Balancing & Cloud Based Management

    Packed with triple protection technology for safe charging, the eVoomXT features optional intelligent battery diagnostics for longer life. Load management and phase balancing options are available so the maximum number of vehicles can be charged simultaneously.



    Available to suit single phase (7.4KW) or three phase (11KW/22KW) options, users can access the smart charge points via the app (free to download) or RFID card. The CPO can access the Deta.e cloud based management solution to oversee status and provide billing as required. Incorporating the OCPP 1.6J operating system allows third party apps and management solutions such as Clenergy, Monta or Fuse to be used where preferred.

    Sort by
    Display per page
    Grid List

    eVoomXT

    Picture of eVoomXT
    Picture of eVoomXT
    Picture of eVoomXT
    Picture of eVoomXT
    • 7.4kW Single Phase / 11kW/22kW Three Phase
    • Integrated 30mA AC & 6mA DC Earth Fault Protection
    • Built in Open PEN Fault Protection RFID Enabled (Supplied With 2 Cards)
    • LCD Screen Allows Operation via the Screen
    • Customisation of LCD Screen Display for Images/Adverts
    • 4G, Wi-Fi, Ethernet and Bluetooth Connectivity
    • Over-the-Air Firmware Updates
    • Scheduled & Energy Tariff Charging Options
    • Safe Electrical Load Management
    • OCPP 1.6J Compliant for Remote Management & Control
    • 5-Year Warranty
    Product Specifications Data Sheet

    eVoomXL

    Picture of eVoomXL
    Picture of eVoomXL
    Picture of eVoomXL
    Picture of eVoomXL
    • 7.4kW Single Phase / 11kW/22kW Three Phase
    • Integrated 30mA AC & 6mA DC Earth Fault Protection
    • Built in Open PEN Fault Protection RFID Enabled (Supplied With 2 Cards)
    • LCD Screen Allows Operation via the Screen
    • Customisation of LCD Screen Display for Images/Adverts
    • 4G, Wi-Fi, Ethernet and Bluetooth Connectivity
    • Over-the-Air Firmware Updates
    • Scheduled & Energy Tariff Charging Options
    • Safe Electrical Load Management
    • OCPP 1.6J Compliant for Remote Management & Control
    • 3-Year Warranty
    Product Specifications Data Sheet
    Specifications
    Model
    eVoomXT
    Product Number
    EVC7005
    Connection Capacity
    Single Phase, 7.4kW & Three Phase , 22KW AC
    Charging Connector
    Un-tethered, IEC 62196/Type 2
    Charging Protocol
    Mode 3 (EN/IEC61851)
    Status Indication / HMI
    Touch Screen & Multi-colour LEDs
    Standard
    WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; 4G; RS485
    Dimensions (H xWx D)
    335mm x 187mm x 85mm
    Mounting Type
    Pole/Wall mounted
    Colour
    Grey
    Unit Material
    PC
    Operating Temperature
    -40 to +55° C
    Operating Humidity
    Up to 95%RH, non-condensing
    IP Rating
    IP54, IK10
    EMC Compliance
    EN61000-6-3:2006, EN61000-6-2:2019
    Safety Compliance
    EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
    EV Charging Compliance
    EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
    AC Charging Output
    7.4kW, 32A@230V AC & 22kW, 32A@400V AC
    Input Voltage
    230V AC & 400V AC nominal
    Input Frequency
    50 Hz
    Input Current (max)
    32 A
    Energy Monitoring
    Power and energy monitoring as standard via APP & LCD display
    Overcurrent Protection
    Internal overcurrent protection
    PEN Fault Protection
    Built-in open PEN protection (detection + isolation). Can safely be installed without an earth-rod
    RCD Protection
    Integrated 30mA AC and 6mA DC RCD
    Service Fuse Protection
    Automated load management via wired CT and MID meter (available seperately)
    MID Meter
    Inbuilt +/- 1%
    Specifications
    Model
    eVoomXL
    Product Number
    7006
    Connection Capacity
    Single Phase, 7.4kW & Three Phase, 22KW AC
    Charging Connector
    Un-tethered, IEC 62196/Type 2
    Charging Protocol
    Mode 3 (EN/IEC61851)
    Status Indication / HMI
    Touch Screen & Multi-colour LEDs
    Standard
    WiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
    Dimensions (H xWx D)
    335mm x 187mm x 85mm
    Mounting Type
    Pole/ Wall Mounted
    Colour
    Grey
    Unit Material
    PC
    Operating Temperature
    -40 to 55 degrees Celcius
    Operating Humidity
    Up to 95% RH, non-condensing
    IP Rating
    IP54, IK10
    EMC Compliance
    EN610000-6-3:2006, EN61000-6-2:2019
    Safety Compliance
    EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
    EV Charging Compliance
    EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
    AC Charging Output
    7.4kW, 32A@230V AC
    Input Voltage
    230 AC & 400V AC Nominal, 50Hz
    Input Current (max)
    32A
    Energy Monitoring
    Power and energy monitoring as standard via APP & LCD Display
    Overcurrent Protection
    Internal overcurrent protection
    PEN Fault Protection
    Built-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
    RCD Protection
    Integrated 30mA AC and 6mA DC RCD
    Service Fuse Protection
    Automated load management via wired CT & MID meter (available separately)
    MID Meter
    Inbuilt +/-1%
