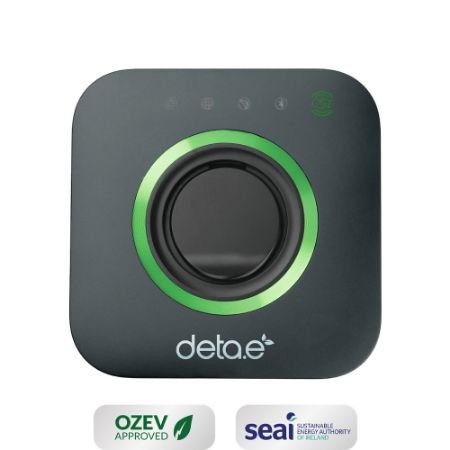

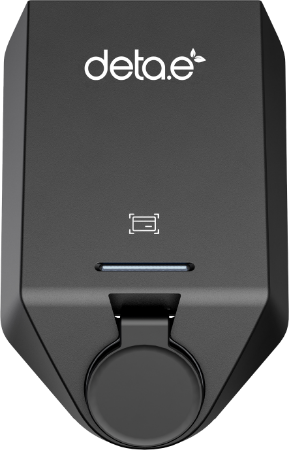

Deta.e. Domestic Charge Point

Residential Charging

Compact, powerful, and easy to use, the Deta.e domestic charge points are the ideal solution for charging any electric or plug-in hybrid vehicle at home.

Designed for quick installation and everyday convenience, they deliver up to 7.4kW of charging power—faster and safer than a standard 3-pin plug, making them perfect for the whole family. Their sleek, flexible design allows for wall or post mounting, even in remote parking areas.

With multiple cable entry options and generous wiring space, installation is a breeze. The socket unit easily clicks into place, and plug-and-play connectivity makes setup simple for both ethernet and load management systems. Controlled via a free mobile app and RFID-ready for added access control, Deta.e makes home EV charging smarter, safer, and more secure.

View Brochure

Easy Install

Simple, quick installation

Smart

Software updates available via Wi-Fi

Safe

Built-in safety features to ensure the charging environment is safe and secure

PEN Protection

Provides loss of earth protection, eliminating the time, cost and disruption for an earth rod to be installed

Reliable

Supported by a customer warranty

Compliant with Electric Vehicles (Smart Charge Points) Regulations 2021

The Deta.e EV charge points are ‘smart’, enabling users to send and receive information as well as respond to signals by increasing/decreasing the rate and/or timings for charging to take advantage of demand side response services.

View as Grid List

Sort by

Display per page

eDock2 - Residential Communal EV Charger

EVC8006
7.4kW Single Phase
Compact Design
Integrated 30mA AC & 6mA DC Earth Fault Protection
Compatible with Solar & Battery Storage
Built-in Open PEN Fault Protection
Wi-Fi, Ethernet, Bluetooth and RS485 Communication
4G (SIM card not supplied)
Dynamic Load Management (CT included)
OCPP 1.6J & OCPP2.0.1 Compliant for Remote Management & Control
Cyber Security/Anti-Tamper Proof
Scheduled & Energy Tariff Options
Over-the-Air Firmware Updates
Cable Lock Function (via Elecq App)
IP65 with Plug Fitted, IP55 with no Plug Fitted
IK10 Impact Rating
RFID Enabled (supplied with 2 Cards)
2 Year Warranty (3 Year Extension FOC on Registration)

Product Specifications Data Sheet

Attribute name	Attribute value
Product Information
Model	eDock2
Product Number	EVC8006
Connection Capacity	Single Phase, 7.4kW AC
Charging Connector	Un-tethered, IEC 62196/Type 2
Charging Protocol	Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI	Multi-colour LED's on front cover
Standard	Wi-Fi, Ethernet, Bluetooth, RS485, 4G (SIM card not supplied)
Physical Properties
Dimensions (H xWx D)	283mm x 191mm x 156mm
Mounting Type	Wall or Post Mounted
Colour	Black
Unit Material	Polycarbonate
Environmental Properties
Operating Temperature	-40 to 55 degrees Celcius
Operating Humidity	Up to 95% RH, non-condensing
IP Rating	IP65 socket, IP55 with plug inserted, IK10
Standards & Compliance
EMC Compliance	EN610000-6-3:2006, EN61000-6-2:2019
Safety Compliance	EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance	EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output	7.4kW, 32A@230V AC
Input Frequency	50 Hz
Input Current (max)	32 A
Energy Monitoring	Power and energy monitoring as standard via APP
Overcurrent Protection	Internal overcurrent protection
Installation
PEN Fault Protection	Built-in open PEN protection (detection + isolation). Deta EVSE can safely be installed without an earth-rod
Service Fuse Protection	Dynamic load management via CT/APP

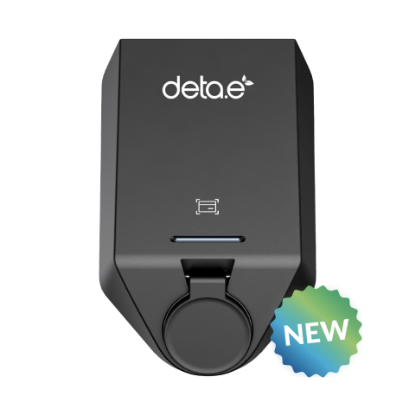

eDock2 - Residential EV Charger

EVC8001
7.4kW Single Phase
Compact Design
Integrated 30mA AC & 6mA DC Earth Fault Protection
Compatible with Solar & Battery Storage
Built-in Open PEN Fault Protection
Wi-Fi, Ethernet, Bluetooth and RS485 Communication
Dynamic Load Management (CT included)
OCPP 1.6J & OCPP2.0.1 Compliant for Remote Management & Control
Cyber Security/Anti-Tamper Proof
Scheduled & Energy Tariff Options
Over-the-Air Firmware Updates
Cable Lock Function (via Elecq App)
IP65 with Plug Fitted, IP55 with no Plug Fitted
IK10 Impact Rating
RFID Enabled (supplied with 2 Cards)
2 Year Warranty (3 Year Extension FOC on Registration)

Product Specifications Data Sheet

Attribute name	Attribute value
Product Information
Model	eDock2
Product Number	EVC8001
Connection Capacity	Single Phase, 7.4kW AC
Charging Connector	Un-tethered, IEC 62196/Type 2
Charging Protocol	Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI	Multi-colour LED's on front cover
Standard	WiFi 802.11b/g/n/a/ac/ax @ 2.4GHz & 5.0 GHz; Ethernet, Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)	283mm x 191mm x 156mm
Mounting Type	Wall or Post Mounted
Colour	Black
Unit Material	Polycarbonate
Environmental Properties
Operating Temperature	-40 to 55 degrees Celcius
Operating Humidity	Up to 95% RH, non-condensing
IP Rating	IP65 socket, IP55 with plug inserted, IK10
Standards & Compliance
EMC Compliance	EN610000-6-3:2006, EN61000-6-2:2019
Safety Compliance	EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance	EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output	7.4kW, 32A@230V AC
Input Frequency	50 Hz
Input Current (max)	32 A
Energy Monitoring	Power and energy monitoring as standard via APP
Overcurrent Protection	Internal overcurrent protection
Installation
PEN Fault Protection	Built-in open PEN protection (detection + isolation). Deta EVSE can safely be installed without an earth-rod
Service Fuse Protection	Dynamic load management via CT/APP

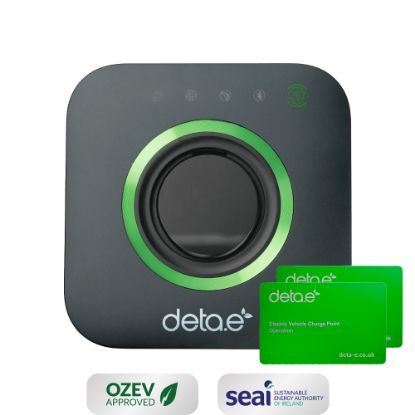

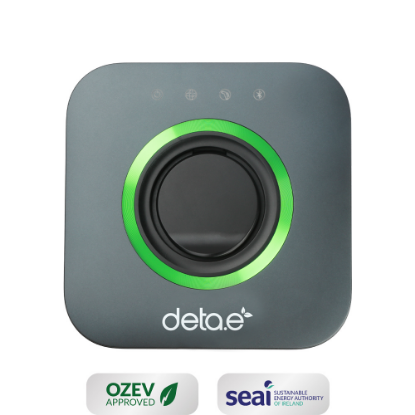

eDock - Residential EV Charger

EVC7001
7.4kW 32A Single Phase
Compact Design
Integrated 30mA AC & 6mA DC Earth Fault Protection
Compatible With Solar & Battery Storage
Built-in Open PEN Fault Protection
Wi-Fi, Ethernet, Bluetooth & RS485 Communication
Static Load Management Possible (via Autel App)
OCPP 1.6J Compliant for Remote Management & Control
Cyber Security/ Anti Tamper Proof
Scheduled & Energy Tariff Options
Over-the-Air Firmware Updates
Cable Lock Function (via Autel App)
IP54 Rated
IK10 Impact Rating
RFID Upgrade Available
2-Year Parts & Labour Warranty Extendable to 3-years Free-of-Charge on Registration

Product Specifications Data Sheet

Attribute name	Attribute value
Product Information
Model	eDock
Product Number	EVC7001
Connection Capacity	Single Phase, 7.4kW AC
Charging Connector	Un-tethered, IEC 62196/Type 2
Charging Protocol	Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI	Multi-colour LED’s on front cover
Standard	WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)	192mm x192mm x109mm
Mounting Type	Pole/Wall mounted
Colour	Anthracite Grey
Unit Material	Polycarbonate
Environmental Properties
Operating Temperature	-30 to +50° C
Operating Humidity	Up to 95%RH, non-condensing
IP Rating	IP54, IK10
Standards & Compliance
EMC Compliance	EN61000-6-3:2006, EN61000-6-2:2019
Safety Compliance	EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
EV Charging Compliance	EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output	7.4kW, 32A@230V AC
Input Voltage	230 AC nominal
Input Frequency	50 Hz
Input Current (max)	32 A
Energy Monitoring	Power and energy monitoring as standard via APP
Overcurrent Protection	Internal overcurrent protection
Installation
PEN Fault Protection	Built-in open PEN protection (detection + isolation). Deta EV Home can safely be installed without an earth-rod
Service Fuse Protection	Automated load management via wired CT and MID meter (available seperately)
