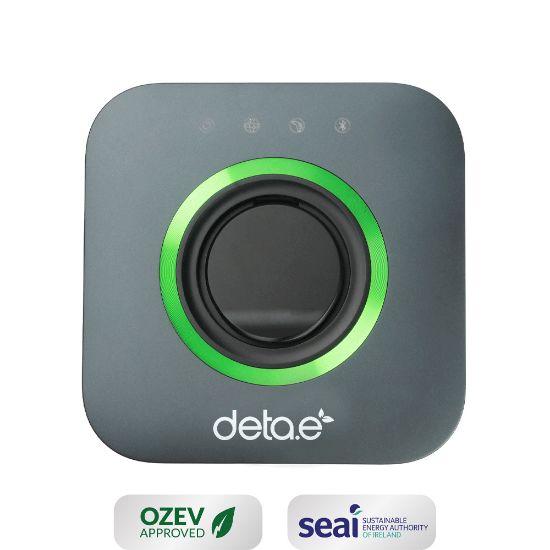

eDock

  • 7.4kW 32A Single Phase
  • Compact Design
  • Integrated 30mA AC & 6mA DC Earth Fault Protection
  • Compatible With Solar & Battery Storage
  • Wi-Fi, Ethernet, Bluetooth & RS485 Communication
  • Auto Load Balancing Available*
  • OCPP 1.6J Compliant for Remote Management & Control
  • Cyber Security/ Anti Tamper
  • Cable Lock Function (via Autel App)
  • IP54 Rated & IK10 Impact Rating
  • OZEV & SEAi Approved
  • Built-in Open PEN Protection
  • 3 Yr Warranty (register within 90 days)
£0.00
Products specifications
Attribute nameAttribute value
Product Information
ModeleDock
Product NumberEVC7001
Connection CapacitySingle Phase, 7.4kW AC
Charging ConnectorUn-tethered, IEC 62196/Type 2
Charging ProtocolMode 3 (EN/IEC61851)
Communication
Status Indication / HMIDeta multi-colour LED's on front cover
StandardWiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)192mm x 192mm x 109mm
Mounting TypePole/ Wall Mounted
ColourAnthracite Grey
Unit MaterialPolycarbonate
Environmental Properties
Operating Temperature-30 to +50 degrees Celsius
Operating HumidityUp to 95%RH, non-condensing
IP RatingIP54, IK10
Standards & Compliance
EMC ComplianceEN610000-6-3:2006, EN61000-6-2:2019
Safety ComplianceEN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
EV Charging ComplianceEN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output7.4kW, 32A@230V AC*
Input Voltage230 AC Nominal
Input Current (max)32A
Energy MonitoringPower & energy monitoring as standard via APP
Overcurrent ProtectionInternal overcurrent protection
Installation
PEN Fault ProtectionBuilt-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
Service Fuse ProtectionAutomated load management via wired CT & MID meter (available separately)
