Sorry - this product is no longer available

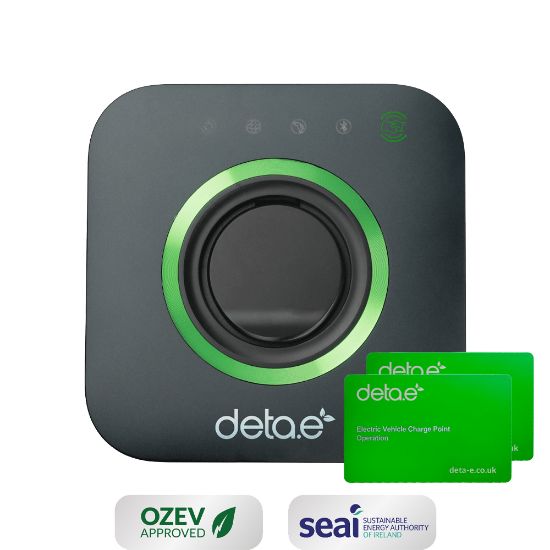

eDock+
7.4kW Single Phase
Compact Design
Integrated 30mA AC & 6mA DC Earth Fault Protection
Compatible with Solar & Battery Storage
Wi-Fi, Ethernet, Bluetooth & RS485 Communication
Auto Load Balancing Included
OCPP 1.6J Compliant for Remote Management & Control
Cyber Security/ Anti Tamper Proof
Cable Lock Function (via Autel App)
RFID Enabled (supplied with 2 cards)
IP54 & IK10 Impact Rated
3-Year Parts & Labour Warranty (when registered within 90 days)
SKU:
EVC7002
£0.00
Add to wishlist
Products specifications
Attribute name
Attribute value
Product Information
Model
eDock+
Product Number
EVC7002
Connection Capacity
Single Phase, 7.4kW AC
Charging Connector
Un-tethered, IEC 62196/Type 2
Charging Protocol
Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI
Deta multi-colour LED's on front cover
Standard
WiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)
192mm x 192mm x 109mm
Mounting Type
Pole/ Wall Mounted
Colour
Black
Unit Material
Polycarbonate
Environmental Properties
Operating Temperature
-30 to +50 degrees Celsius
Operating Humidity
Up to 95%RH, non-condensing
IP Rating
IP54, IK10
Standards & Compliance
EMC Compliance
EN610000-6-3:2006, EN61000-6-2:2019
Safety Compliance
EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance
EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output
7.4kW, 32A@230V AC
Input Frequency
230 AC Nominal, 50 Hz
Input Current (max)
32A
Energy Monitoring
Power and energy monitoring as standard via APP
Overcurrent Protection
Internal overcurrent protection
Installation
PEN Fault Protection
Built-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
Service Fuse Protection
Automated load management via wired CT & MID meter (available separately)
Approved Installer Registration
×
Deta.e training is required by the person commissioning the charge point.
