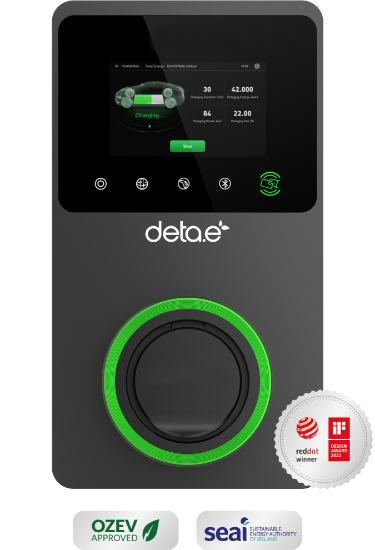

eVoomXT

£0.00

Products specifications

Attribute name	Attribute value
Product Information
Model	eVoomXT
Product Number	EVC7005
Connection Capacity	Single Phase, 7.4kW & Three Phase , 22KW AC
Charging Connector	Un-tethered, IEC 62196/Type 2
Charging Protocol	Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI	Touch Screen & Multi-colour LEDs
Standard	WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; 4G; RS485
Physical Properties
Dimensions (H xWx D)	335mm x 187mm x 85mm
Mounting Type	Pole/Wall mounted
Colour	Grey
Unit Material	PC
Environmental Properties
Operating Temperature	-40 to +55° C
Operating Humidity	Up to 95%RH, non-condensing
IP Rating	IP54, IK10
Standards & Compliance
EMC Compliance	EN61000-6-3:2006, EN61000-6-2:2019
Safety Compliance	EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance	EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output	7.4kW, 32A@230V AC & 22kW, 32A@400V AC
Input Voltage	230V AC & 400V AC nominal
Input Frequency	50 Hz
Input Current (max)	32 A
Energy Monitoring	Power and energy monitoring as standard via APP & LCD display
Overcurrent Protection	Internal overcurrent protection
Installation
PEN Fault Protection	Built-in open PEN protection (detection + isolation). Can safely be installed without an earth-rod
RCD Protection	Integrated 30mA AC and 6mA DC RCD
Service Fuse Protection	Automated load management via wired CT and MID meter (available seperately)
MID Meter	Inbuilt +/- 1%
